2-Sided

Python: "mtl_twosided"

When applied to a surface, this material forks between two other materials. One is used for front side hits, and the other for back side hits. This can be used to control the appearance of both sides in a tree leaf independently, for example. Note that the front and back directions are determined by the surface normals.

Common

Node alias

Python: "mtl_alias"

Human-readable node alias.

Alias color

Python: "mtl_alias_color"

Identificative node color.

Submaterials

Front material

Python: "mtl_twosided_front_mtl"

Material that will show on the positive (front facing) side of the surface.

Swap channels

Python: "mtl_twosided_swap"

Swaps the front and back materials.

Back material

Python: "mtl_twosided_back_mtl"

Material that will show on the negative (back facing) side of the surface.

Displacement (Micro-Patch)

Enable displacement

Python: "mtl_mpdm_enable"

Enables micro-polygon (micro-patch) displacement mapping (a.k.a., MPDM) in the object the material is applied to. Unlike brute-force subdiv+displacement, MPDM spawns micro-geometry on path-tracing time only, and hence is capable of delivering virtually unlimited amounts of detail with a negligible memory footprint.

Displacement height

Python: "mtl_mpdm_height"

Determines, in real world units, how high the spawned micro-geometry will be pushed away from the base mesh. This value acts as a multiplier for the height map.

Displacement height map

Python: "mtl_mpdm_height_map"

Sets the displacement height texture map. Every single texel in the height map will spawn a virtual micro-patch (a bilinear quad patch) in path-tracing time.

Midpoint

Python: "mtl_mpdm_midpoint"

Defines the displacement baseline. Setting this value to 0.5 will displace half the height inwards and half outwards. The right setting for this value depends on the DCC app used to produce the displacement map. e.g., 32-bit .exr maps exported from ZBrush expect a midpoint value of 0.0.

Waterlevel (lo)

Python: "mtl_mpdm_waterlevel_lo"

Defines a height map value below which displaced geometry is clipped out. The default value (0) clips no geometry at all.

Waterlevel (hi)

Python: "mtl_mpdm_waterlevel_hi"

Defines a height map value above which displaced geometry is clipped out. The default value (1) clips no geometry at all.

Opacity

Enable opacity

Python: "mtl_opacity_enable"

Enables opacity mapping in the geometry the material is applied to. Note that opacity mapping is computationally-intensive.

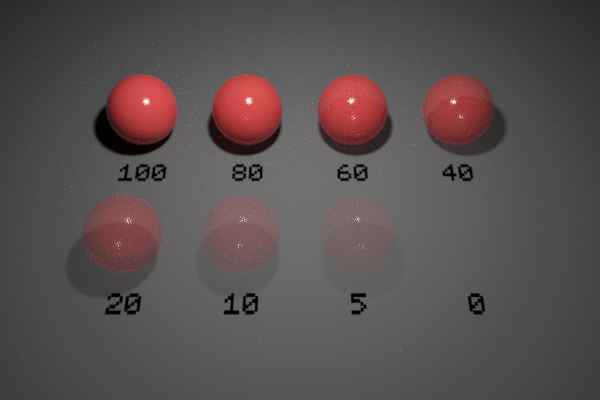

Opacity

Python: "mtl_opacity"

Defines the percentage of light rays that will be allowed to pass through the object not being affected by it in any way.

Opacity map

Python: "mtl_opacity_map"

Defines the opacity level of the object with a grayscale texture map. Opacity maps are interpreted so dark colors make the surface more translucent; i.e., black completely clips the geometry away, whereas white produces fully solid geometry. This map gets multiplied by the numerical opacity value.

Single-sided geometry

Python: "mtl_single_sided"

When enabled, object(s) this material is applied to will be visible from their front side, but invisible from their back side.
